LHB02-4FT
■Product Features
.Ultra-thin shape, simple and beautiful；
.Suspended installation and pole installation are optional,removable, easier maintenance
.0~10Vdimming, Pri/Microwave/Bluetooth sensor optional, Can be remote control, dial code
.Smooth and comfortable light, low glare, flicker free
.Ra≥80 .High lighting efficiency 130lm/W；
.ETL DLC Certification
.5years warranty
■Application
.Storehouse
.Supermarket
.Factory
.Station

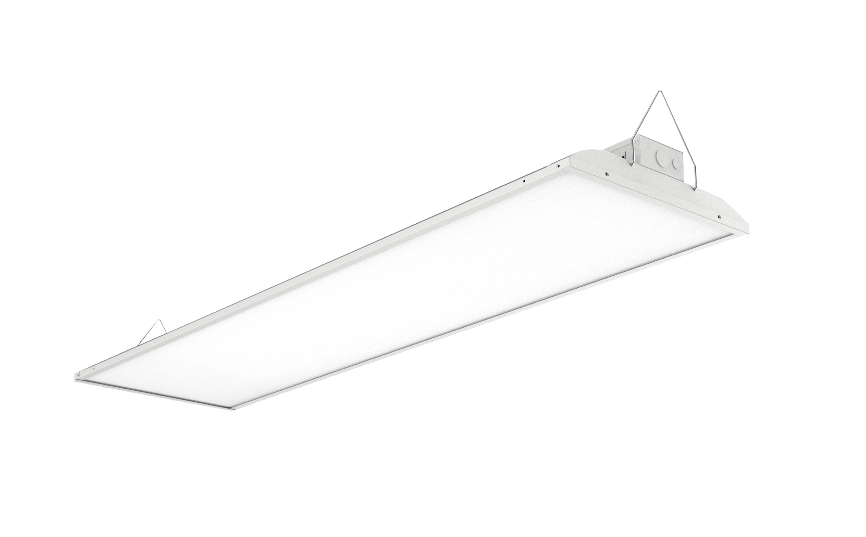

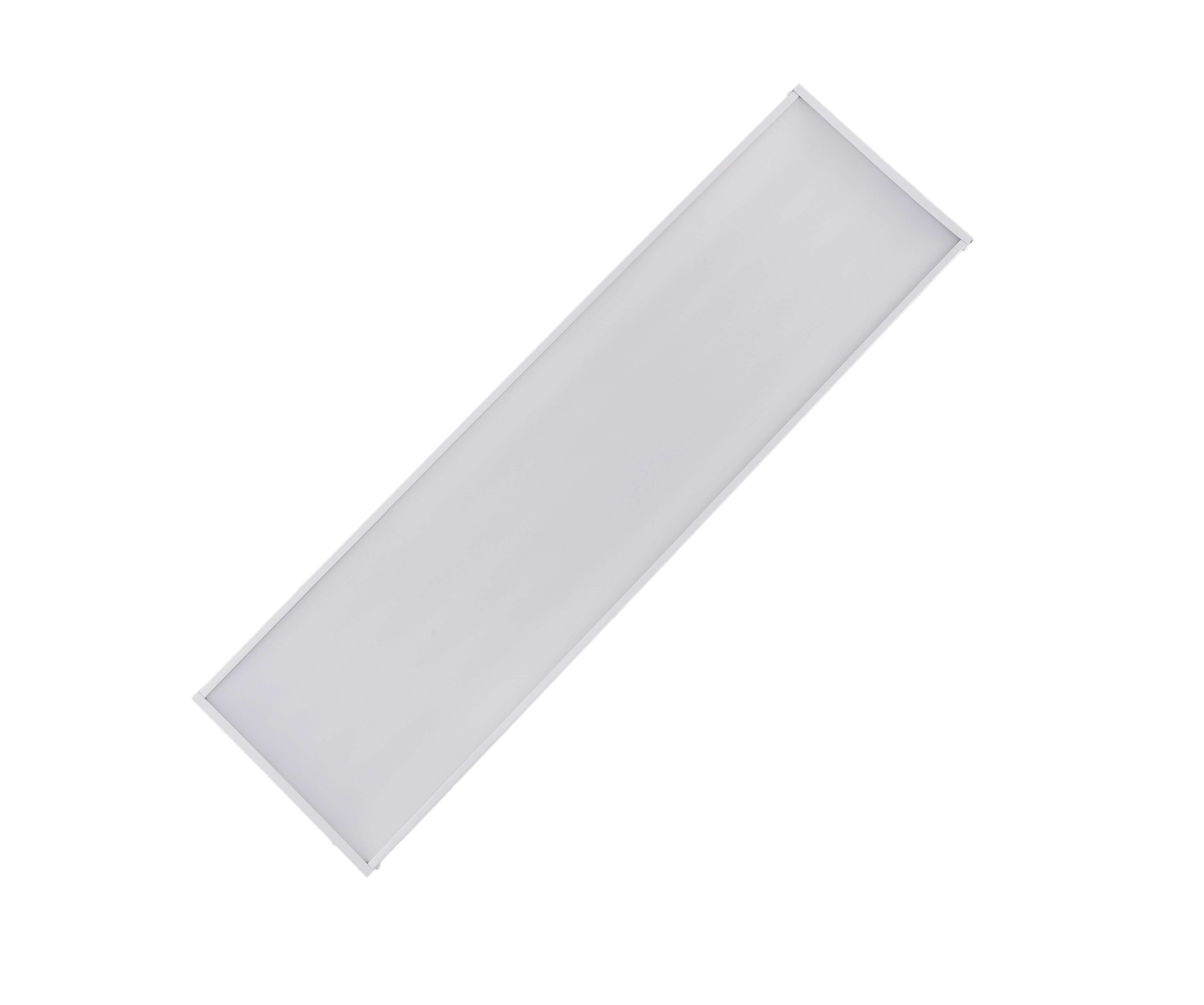

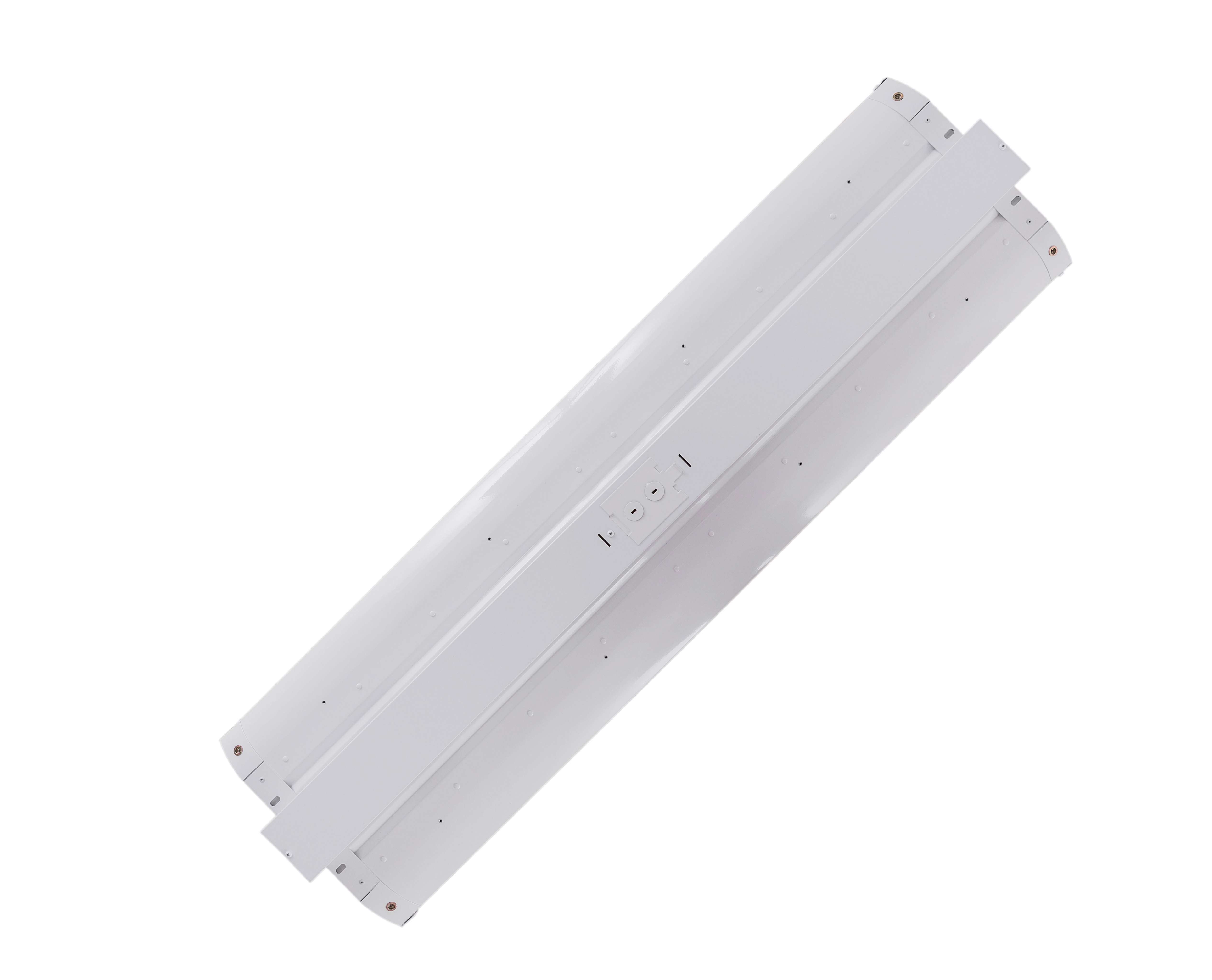

■Product picture
■Sensor
■Product description
Product type | Product Code | Input Voltage | Wattage | CCT | Lumens | Lm/W |
typical | LHB02-4FT-U-210-XXX-XX |
AC120-277V | 210 | 30-50K | 28350 | 135 |
LHB02-4FT-U-250-XXX-XX | 250 | 30-50K | 33750 | 135 | ||
LHB02-4FT-U-300-XXX-XX | 300 | 30-50K | 40500 | 135 | ||
LHB02-4FT-H-210-XXX-XX | AC120-347V | 210 | 30-50K | 28350 | 135 | |
LHB02-4FT-H-300-XXX-XX | 300 | 30-50K | 40500 | 135 |
■Technical Specifications
Product Code | LHB02-4FT-X-XXX-XXX-XX |
Input Voltage | AC120-277V/120-347V |
Power Factor | ≥0.9 |
CCT | 3000-500K |
Efficacy | 135（Lm/W） |
CRI | Ra≥80 |
SDCM | ≤5.0 |
| Working Lifetime | ≥50000hrs |
| Warranty | 5 years |
| Operating Temp | -20-45℃ |
IP Rating | IP20 |

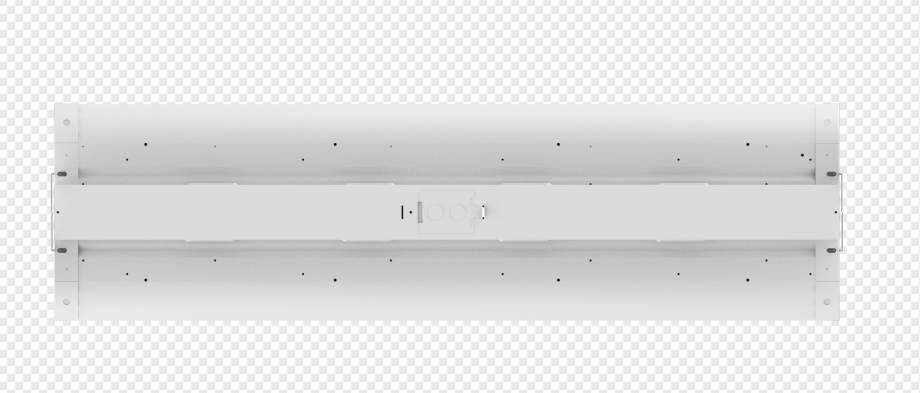

■Product structure and size
Size:1160*320*78mm
Size:1244*320*78mm
■Packing Details
Product Type | 4FT |
Pack Quantity | 1PCS |
Net Weight | 6.9kg |
Gross Weight | 8.7kg |
Box Size | 1220*372*120mm |
Product Type | 4FT |
Pack Quantity | 1PCS |
Net Weight | 7.1kg |
Gross Weight | 8.9kg |
Box Size | 1285*372*120mm |
