Retrkit kit 2x4FT

Power 22/30/36/45W
Voltage Input 120-277/347V
Dimmable 0-10V
Certificates UL/DLC/RHOS
Warranty 5 years
Working Lifetime ≥50000hrs
Light Effect 135Lm/W
13567026699
Detail

   ■Product Features

.Ultra-thin shape, simple and beautiful；

.Removable, easier maintenance；

.0- 10V dimming；

.Smooth and comfortable light, low glare, flicker free；

.Ra≥80 .High lighting efficiency 135lm/W；

.UL、FCC、DLC、ROHS Certification

.5years warranty

■Application

.Shool

.Office

.Hospitality

.Class Room

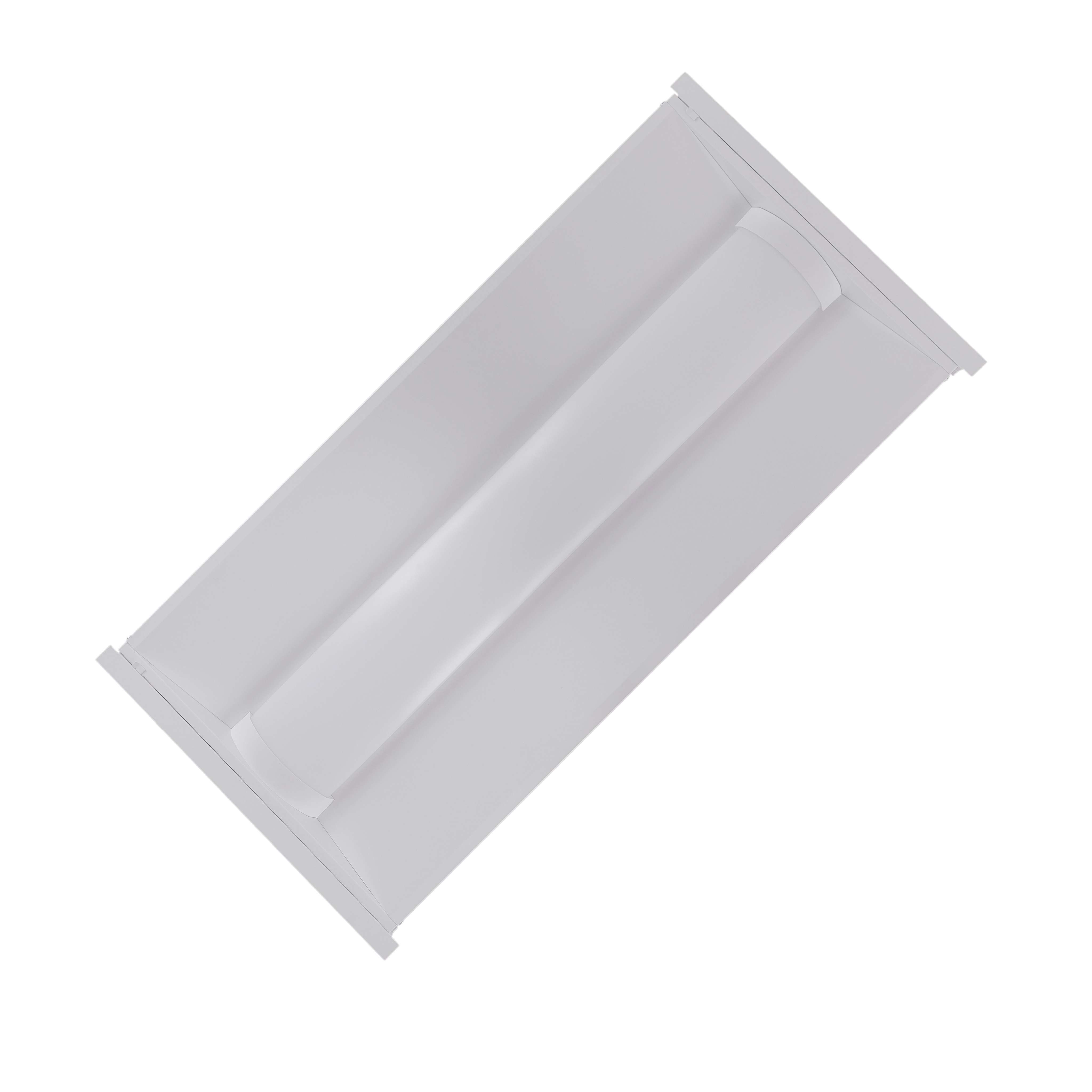

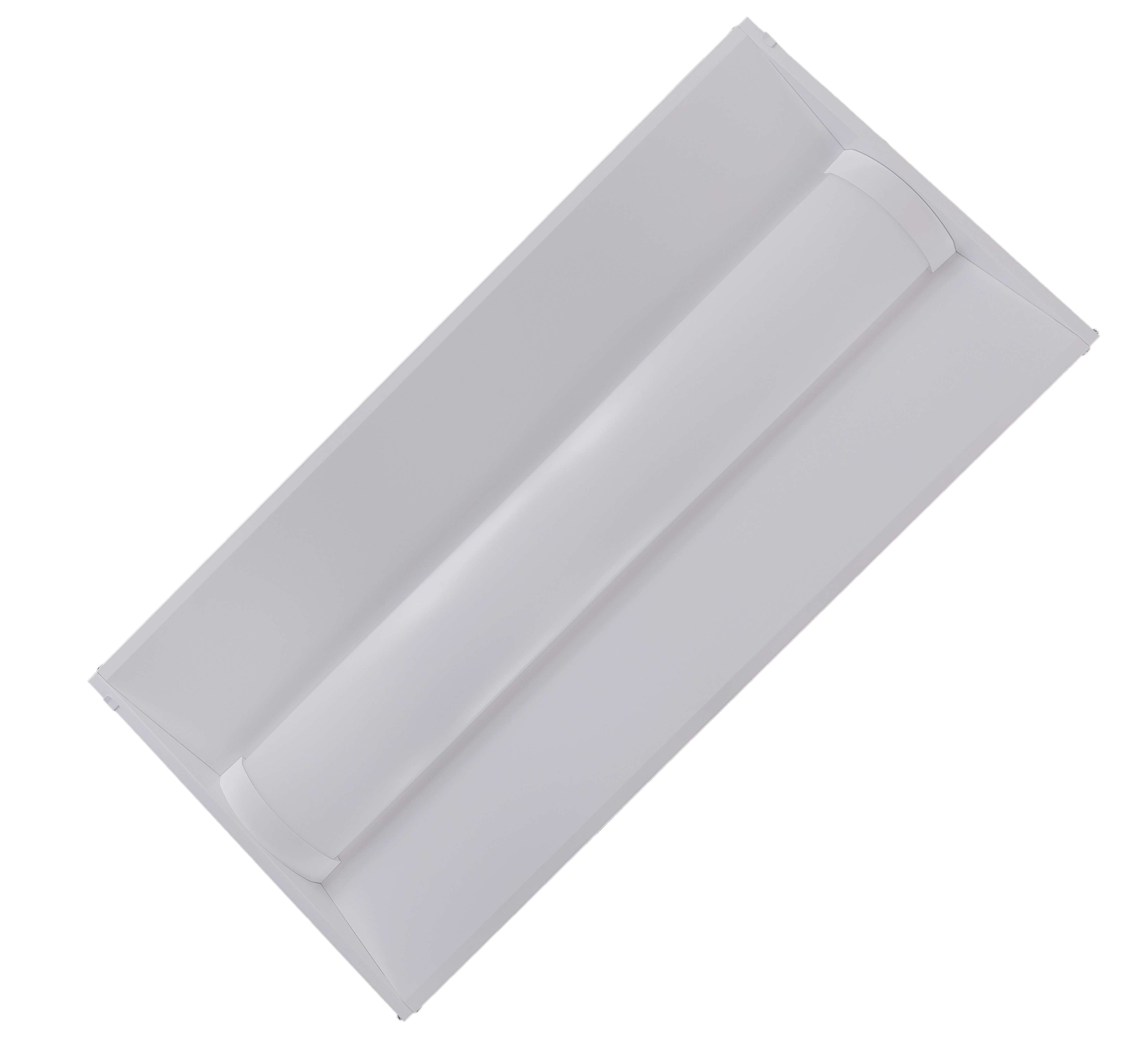

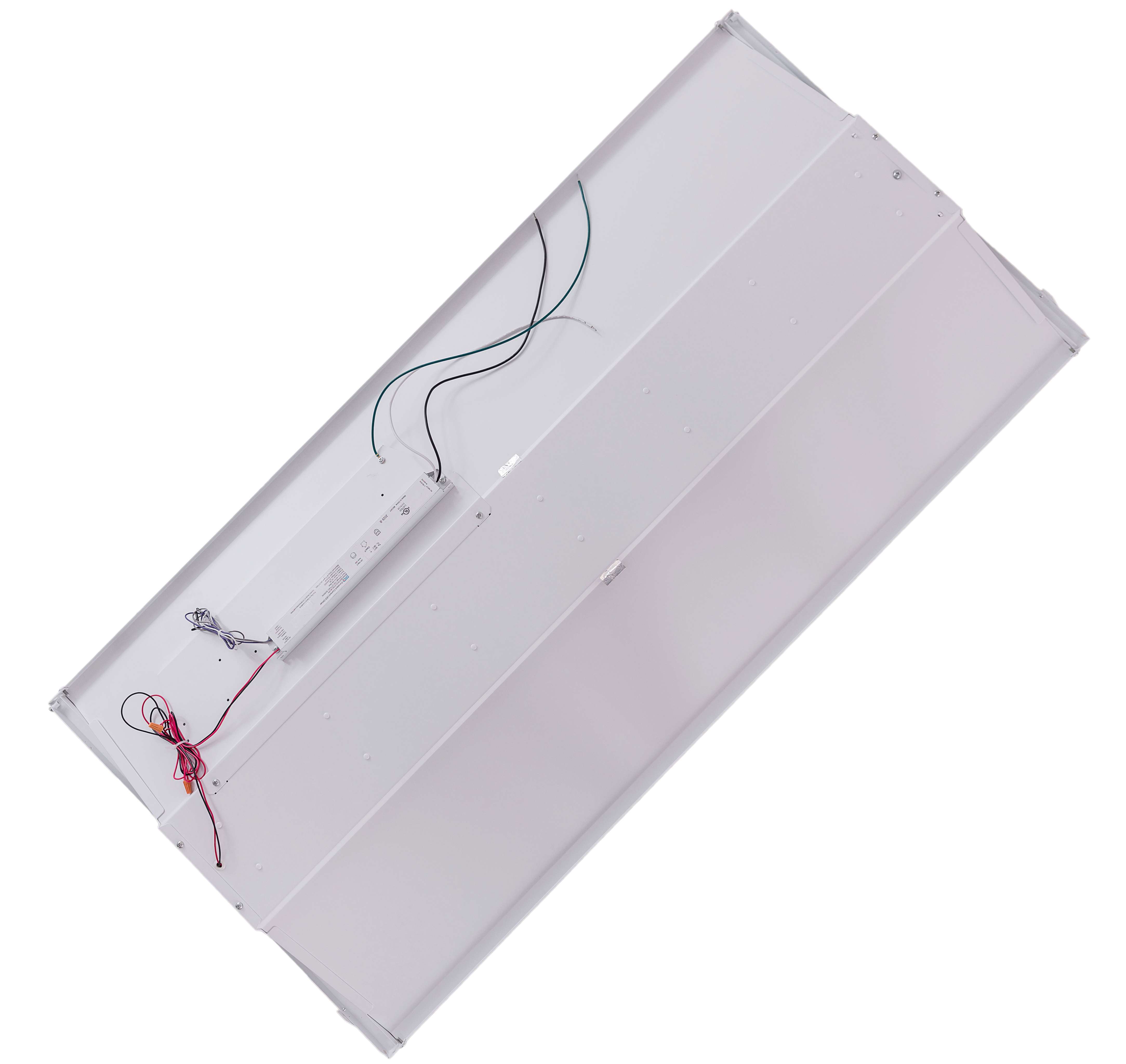

   ■Product picture



   ■Product description

Product type

Product Code

Wattage

CCT

Lumens

Lm/W





   typical


CR-24-U-P-22-XXK-80-D

22

30--50K

2970

135

CR-24-U-P-30-XXK-80-D

30

30--50K

4050

135

CR-24-U-P-36-XXK-80-D

36

30--50K

4860

135

CR-24-U-P-45-XXK-80-D

45

30--50K

6075

135

CR-24-U-P-60-XXK-80-D

60

30--50K

8100

135


■TechnicalSpecifications

Product Code

CR-XX-X-P-XX-XXK-80-D

Input Voltage

AC120-277V/120-347V

Power Factor

≥0.9

Efficacy

135（Lm/W）

CRI

Ra≥80

SDCM

≤4.0

Beam Angle

114°

Working Lifetime

≥50000hrs

warranty

5 years

Operating Temp

-20-35℃

IP Rating

IP20

   ■Product structure and size(mm)：    6.png

                   Size:1152.5*574*76mm

■Packing Details

Product Type

2x4

Pack Quantity

1PCS

Net Weight

5.1kg

Gross Weight

7.5kg

Box Size

1198*596*89mm
