■Product Features
.Ultra-thin shape, simple and beautiful；
.Suspended installation and pole installation are optional,removable, easier maintenance
.0~10Vdimming, Pri/Microwave/Bluetooth sensor optional, Can be remote control, dial code
.Smooth and comfortable light, low glare, flicker free
.Ra≥80 .High lighting efficiency 130lm/W；
.ETL DLC Certification
.5years warranty
■Application
.Storehouse
.Supermarket
.Factory
.Station

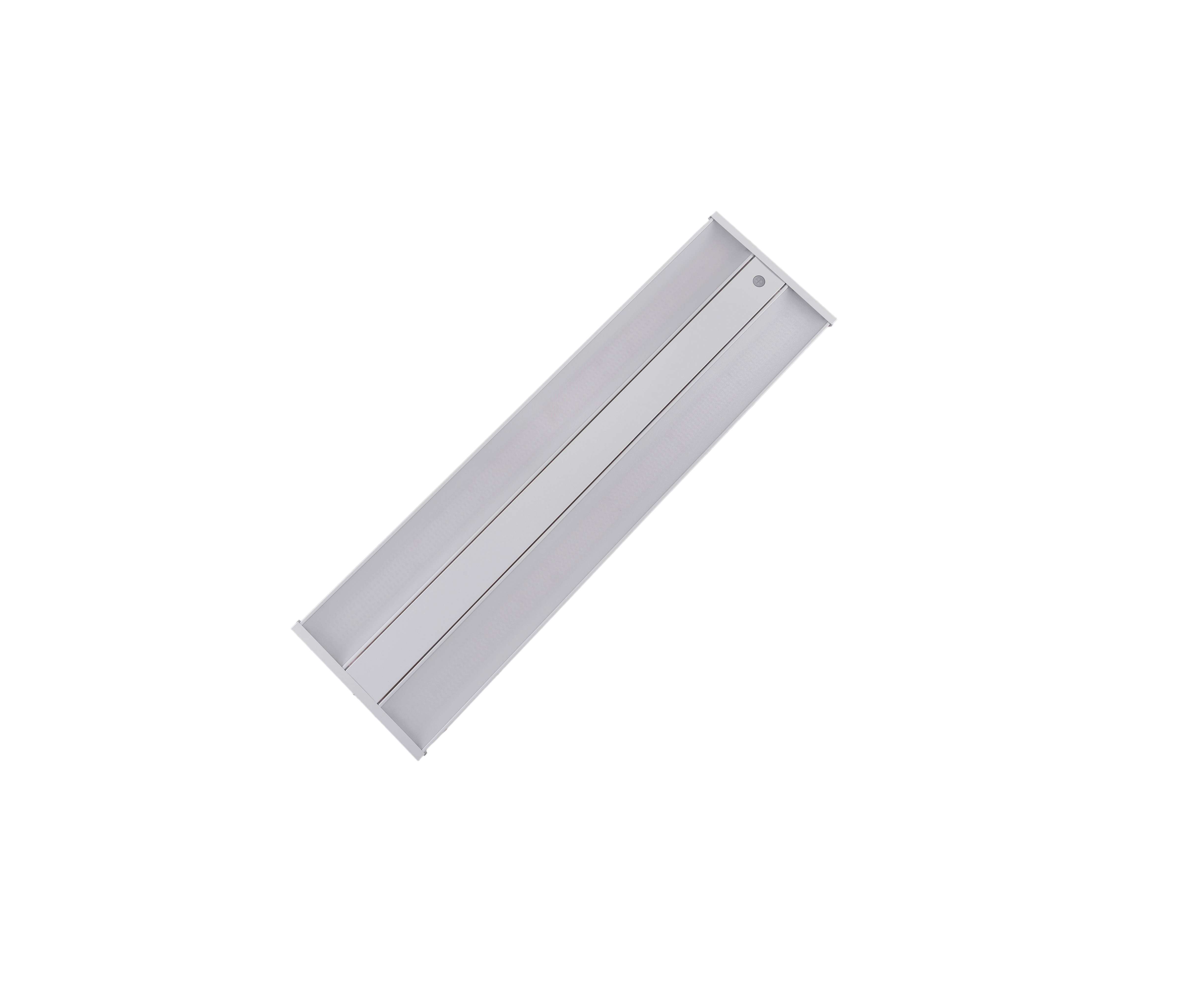

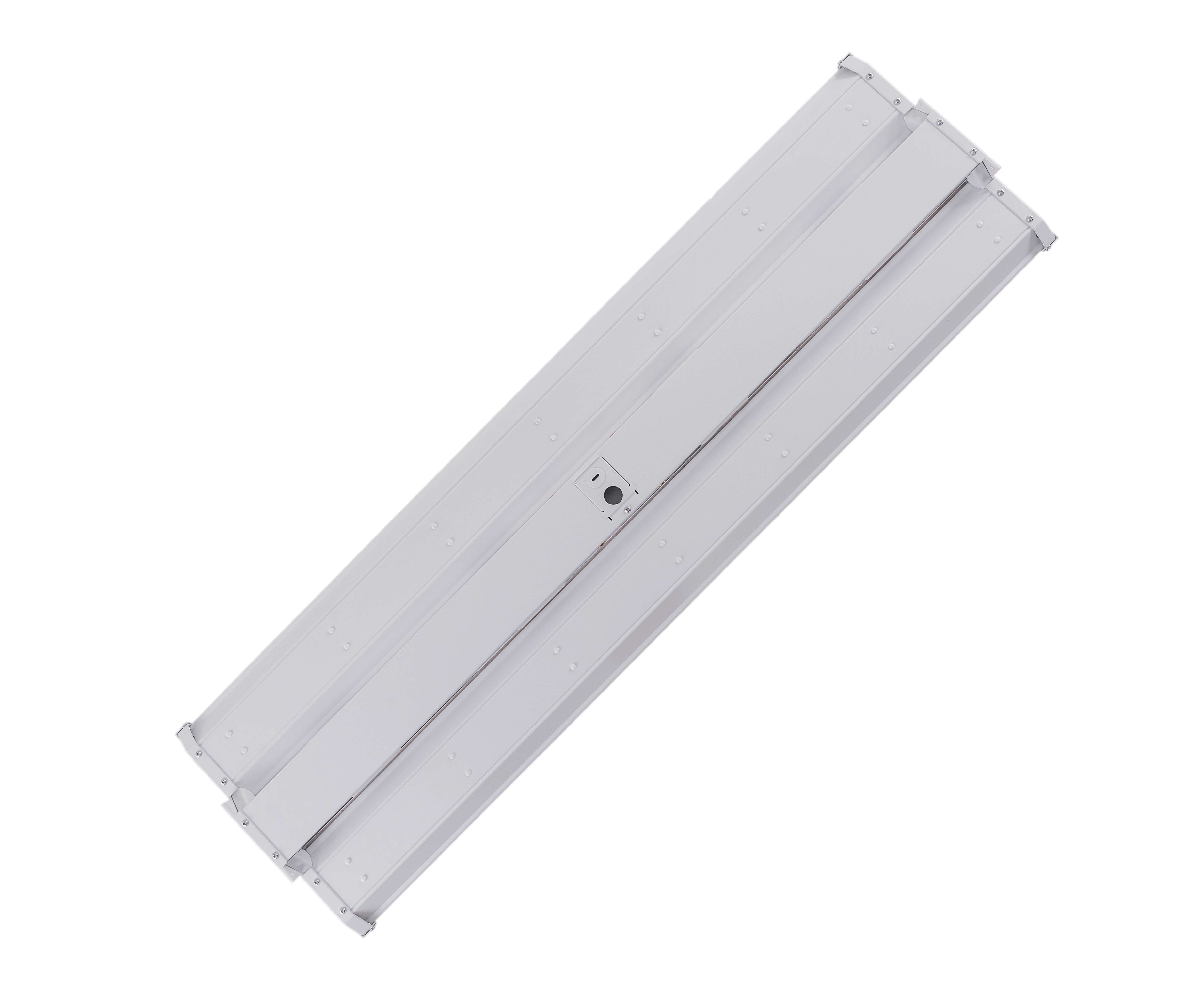

■Product picture
■Sensor
Input Voltage | 12V DC |
Input Current | 35mA |
Standby Power | 0. 45W |
Dimming | 0-1 ov |
Detection range | 80ft Max. |
Mounting height | 40ft Max. |
IP rate | IP66 |
Op. temperature | -30°F~131°F (-30°C~55°C) |
Certification | UL |
Warranty | Five year warranty |
■ Sensor dial switch settings
■Sensor
Power supply | 120/277/347VAC 50/60HZ |
Maximum load @-40°F~+167°F (-40°C ~ +75°C) | Resistive/Tungsten - 600W@120V Electronic Ballast - 800W@120V/1200W@277V@347V |

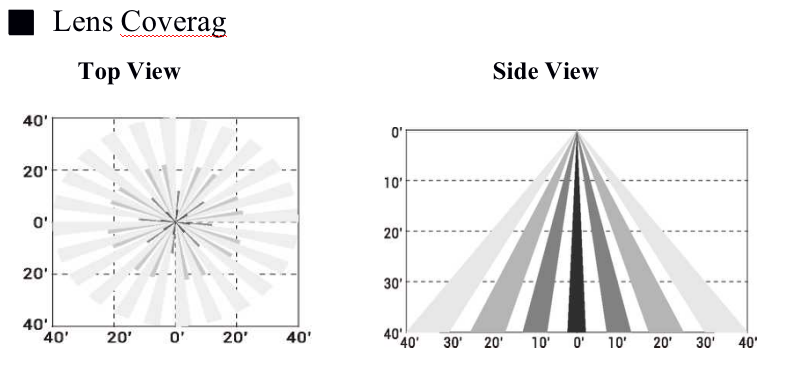

PIR Len L1 | 30ft@25ft height/360 |
PIR Len L2 | 30ft@40ft height/360 |
Time setting | 10sec. -30min.(adjustable) |
Light-control | 10-300Lux(adjustable) |
Humidity Temperature | Max. 95% RH -40°F~+167°F(-40oC~+75oC) |
■product description
Product type | Product Code | Input Voltage | Wattage | CCT | Lumens | Lm/W |
typical | LHB01-4FT-U-210-XXX-XX |
AC120-277V | 210 | 30-50K | 28350 | 135 |
LHB01-4FT-U-250-XXX-XX | 250 | 30-50K | 33750 | 135 | ||
LHB01-4FT-U-300-XXX-XX | 300 | 30-50K | 40500 | 135 | ||
LHB01-4FT-H-210-XXX-XX | AC120-347V | 210 | 30-50K | 28350 | 135 | |
LHB01-4FT-H-300-XXX-XX | 300 | 30-50K | 40500 | 135 |
■Technical Specifications
Product Code | LHB01-4FT-X-XXX-XXX-XX |
Input Voltage | AC120-277V/120-347V |
Power Factor | ≥0.9 |
CCT | 3000-500K |
Efficacy | 135（Lm/W） |
CRI | Ra≥80 |
SDCM | ≤5.0 |
| Working Lifetime | ≥50000hrs |
| Warranty | 5 years |
| Operating Temp | -20-45℃ |
IP Rating | IP20 |
■Product structure and size(mm)：
Size:1158*332*42mm
Size:1240*332*42mm
■Packing Details
Product Type | 4FT |
Pack Quantity | 1PCS |
Net Weight | 6kg |
Gross Weight | 7kg |
Box Size | 1200*345*65mm |
Product Type | 4FT |
Pack Quantity | 1PCS |
Net Weight | 6.2kg |
Gross Weight | 7.2kg |
Box Size | 1265*350*60mm |
